24U, 27U, 32U, 42U, 48U Sizes
- Perforated doors for massive front-to-rear airflow up to 78%
- Tool less mounting slots for vertical PDUs and cable managers
- Loading capacity up to 1050kg
- Standard, Deep & Wide Structure, Knockdown models at your choice

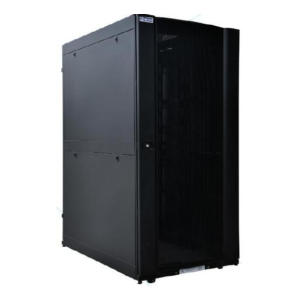

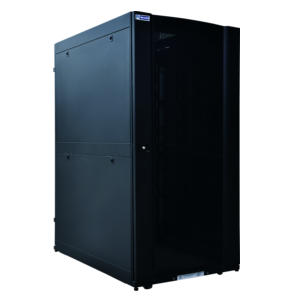

Proteger’s PSR-Series Server Rack is the ultimate solution designed & engineered for demanding data centre environments. To achieve optimum versatility within the server rack, users can set multiple depths throughout the rack by adjustable 19” mounting rails on heavy duty side supports. Horizontally divided side panels provide ease of access and convenient post-installation maintenance. Over 78% perforations on front and rear door enable optimum airflow within the rack. Flat-pack option enables savings up to 60% in the transport cost and warehouse space.
Description
Highlights
Creative Front Door with Easy Lock and Choice of Left/Right Opening
Proteger’s unique lock design enables you to adjust the direction of the door opening from either left or right to meet on-site requirements.
Wide Range of Models to Meet Various Data Centre Requirements
Proteger’s PSR series offers a wide range of 20 standard sizes to choose. The entire range can be used with almost all Proteger’s rack accessories from Cable Management Products, Cooling Fans, PDUs, etc.
Ideal for High Density Data Centres
Heavy-duty PSR Series Server Racks hold up to 1050 kg and support advanced cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front-to-rear airflow that exceeds server manufacturer requirements. PSR Series Server Racks are fully compatible with hot-aisle/ cold-aisle data centre configurations. Airflow optimization accessories prevent air recirculation that compromises cooling efficiency.
Built for Your Convenience
With a design streamlined by years of customer feedback and IT best practices, PSR Series Server Racks makes your job easier. Enclosures shipped fully assembled for rapid deployment and roll into place on heavy-duty casters. Tool less mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data centre baying applications.
Features
Adjustable Mounting Rails
Front and rear sets of vertical rails adjust in quarter inch increments. Adjustment is quick and convenient – simply unscrew the rails, slide them to the required depth and refasten.
Top
Spring-loaded pins allow the top panel to be removed and replaced in seconds. Two kinds of top panel are optional, one is for fixing fan unit and the other is for fixing cable ladder.
Innovative Front Door Lock
The door is perforated for optional airflow. The unique lock, unlike swing handle latch, makes the door reversible to open from the right or the left. The perforation rate of the front door can reach over 78%.
Split Rear Doors (Lockable / Removable)
Split rear doors reduce clearance requirements for service access. The doors are perforated for optimal airflow.
Side Panels (Lockable / Removable)
Side panels are removable and lockable, improving ease of installation and service. Standard 24U models include 2 side panels. Standard 42U and 48U models include 4 side panels.
Heavy-Duty Casters & Levelling Feet (Removable)
Casters support a rolling load capacity of 1050 kg, allowing racks to be pre-configured and rolled to the final installation location. Levelling feet support a stationary load capacity of 1333 kg and adjust to improve rack stability.
|
S/N |
Specifications |
Qty(24U) |
Qty (42U/48U) |
|
1 |
Front vented door with single lock (PSR-A Type) |
1 |
1 |
|
2 |
Top Cover |
1 |
1 |
|
3 |
Fan Unit |
2 |
1 |
|
4 |
Split Rear Door |
1 |
1 |
|
5 |
Front & Rear Door Frame |
2 |
2 |
|
6 |
Side Panels |
2 |
2 |
|
7 |
Horizontal Beam |
4 |
6 |
|
8 |
Cable Management Rail |
2 |
2 |
|
9 |
rear Door Hinge |
4 |
4 |
|
10 |
Front Door Hinge |
2 |
2 |
|
11 |
Bottom Panel |
1 |
1 |
|
12 |
2″ Caster |
4 |
4 |
|
13 |
Levelling Feet |
4 |
4 |
|
14 |
Front Door Lock |
1 |
1 |
|
15 |
Vertical Rail – Right |
2 |
2 |
|
16 |
Vertical Rail – Left |
2 |
2 |
Note: Earthing kit and M6 cage nuts, screws and washers are included in the above.
Specifications
| Model | Capacity | Dimension(W*D*H)mm | BU PacakagingDimension(W*D*H)m | Mounting Depth(mm) |
| PSR6624 | 24 U | 600*600*1191 | 650*750*1341 | 200-357 |
| PSR6824 | 24 U | 600*800*1191 | 650*950*1341 | 200-357 |
| PSR6124 | 24 U | 600*1000*1191 | 650*1150*1341 | 500-757 |
| PSR8824 | 24 U | 800*800*1191 | 850*950*1341 | 200-357 |
| PSR6642 | 42U | 600*600*1992 | 650*750*2150 | 200-357 |
| PSR6842 | 42U | 600*800*1992 | 650*950*2150 | 200-357 |
| PSR6142 | 42U | 600*1000*1992 | 650*1150*2150 | 500-757 |
| PSR61242 | 42U | 600*1200*1992 | 650*1350*2150 | 600-957 |
| PSR8842 | 42U | 800*800*1992 | 850*959*2150 | 200-357 |
| PSR8142 | 42U | 800*1000*1992 | 850*1150*2150 | 500-757 |
| PSR81242 | 42U | 800*1200*1992 | 850*1350*2150 | 600-957 |
| PSR6648 | 48U | 600*600*2259 | 650*750*2350 | 200-357 |
| PSR6848 | 48U | 600*800*2259 | 650*950*2350 | 200-357 |
| PSR6148 | 48U | 600*1000*2259 | 650*1150*2350 | 500-757 |
| PSR61248 | 48U | 600*1200*2259 | 650*1350*2350 | 600-957 |
| PSR8848 | 48U | 800*800*2259 | 850*959*2350 | 200-357 |
| PSR8148 | 48U | 800*1000*2259 | 850*1150*2350 | 500-757 |
